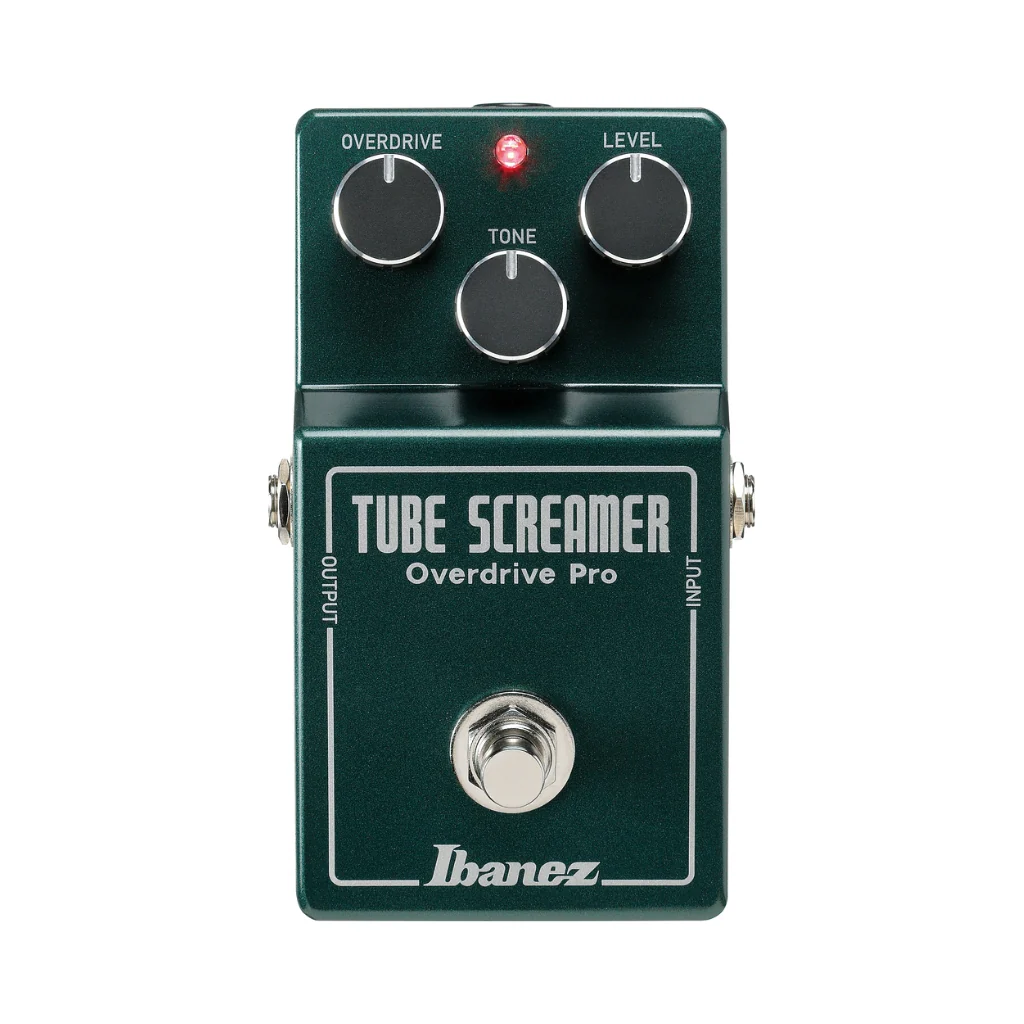

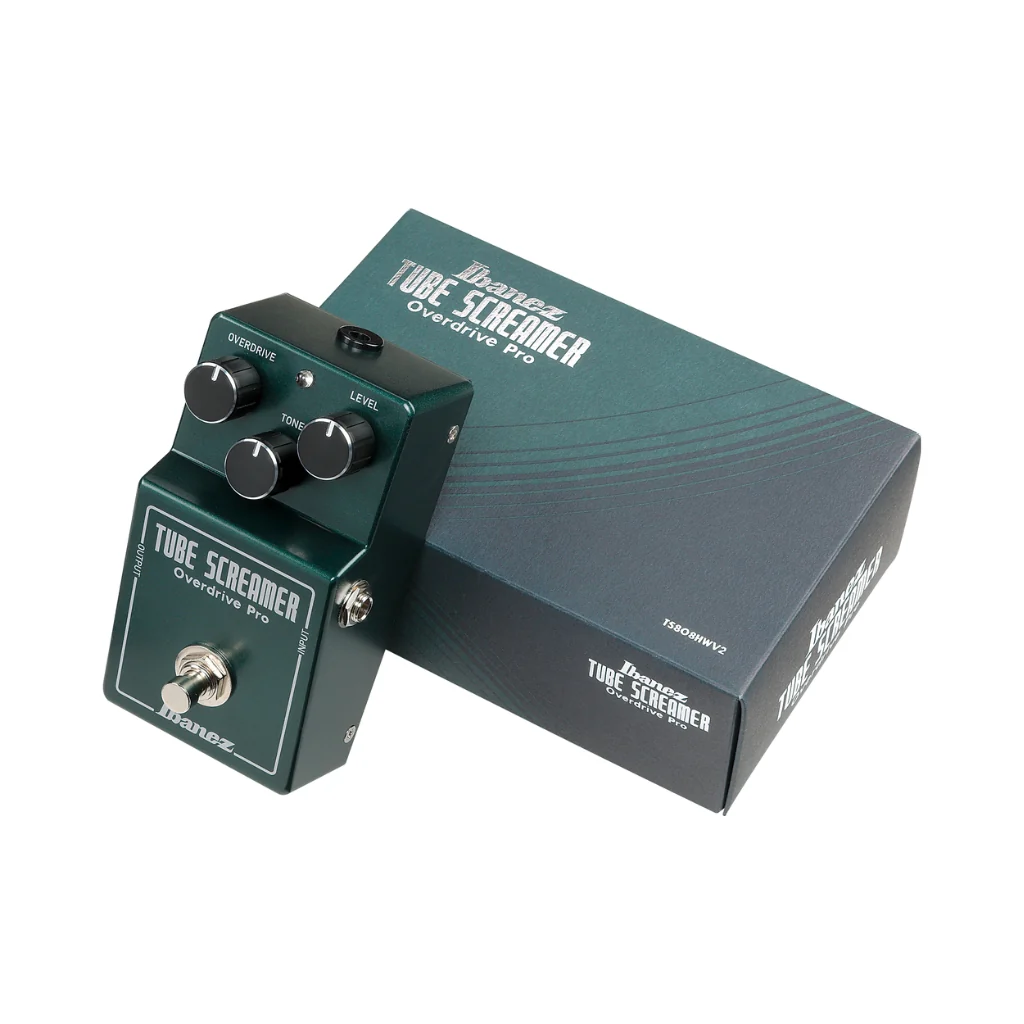

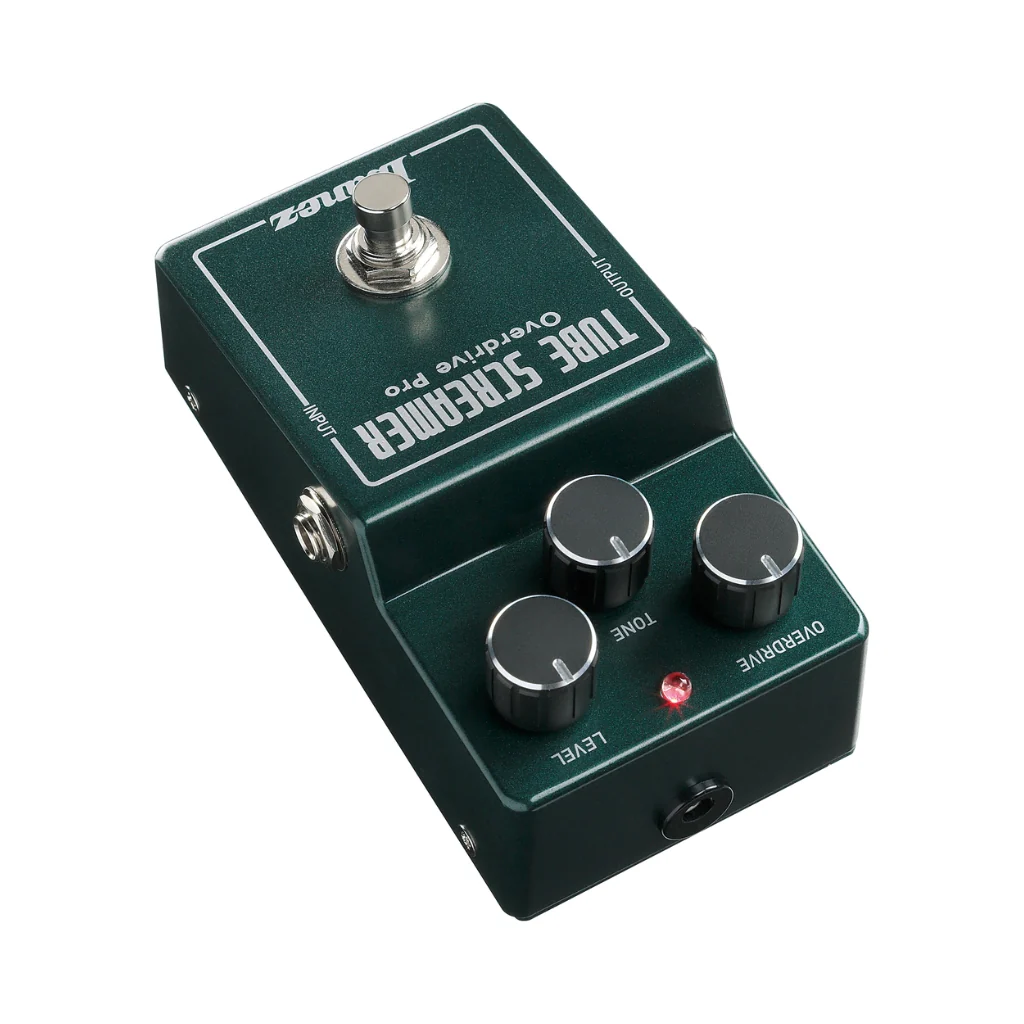

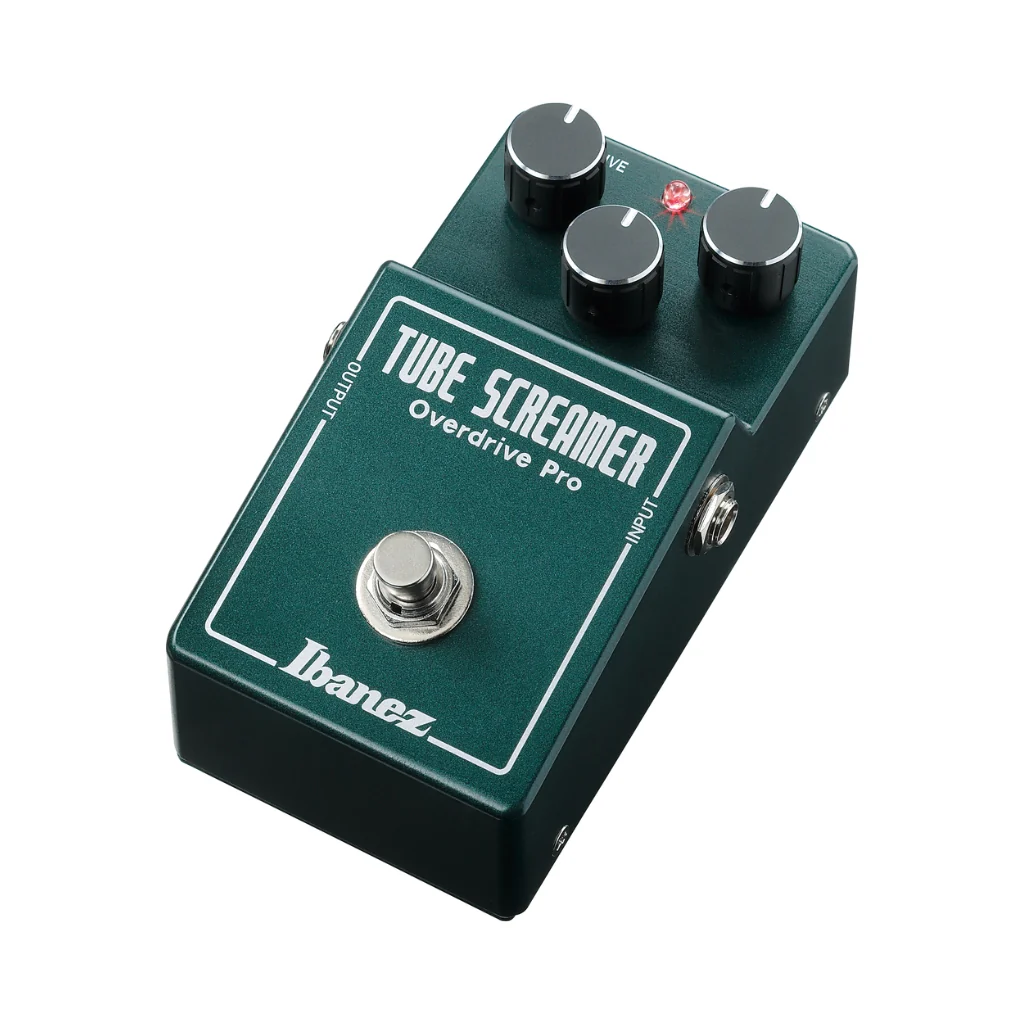

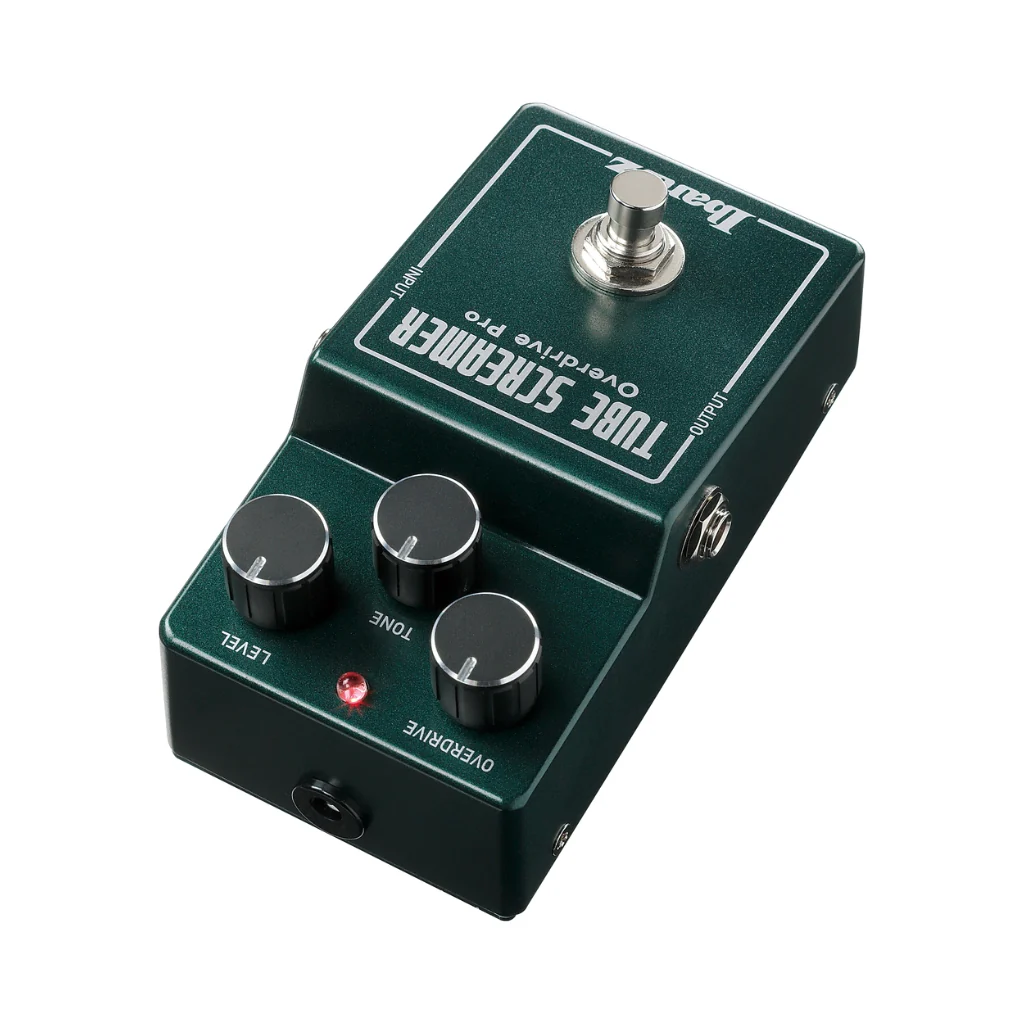

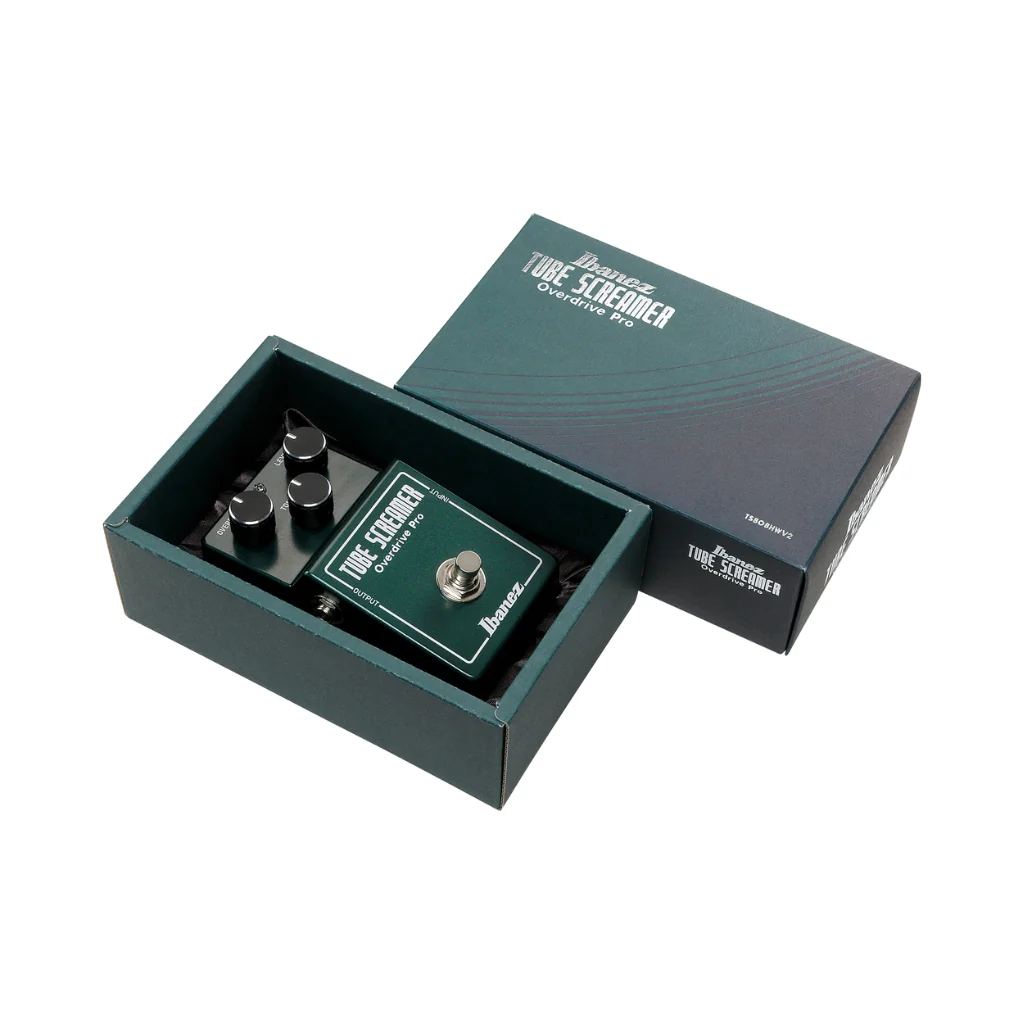

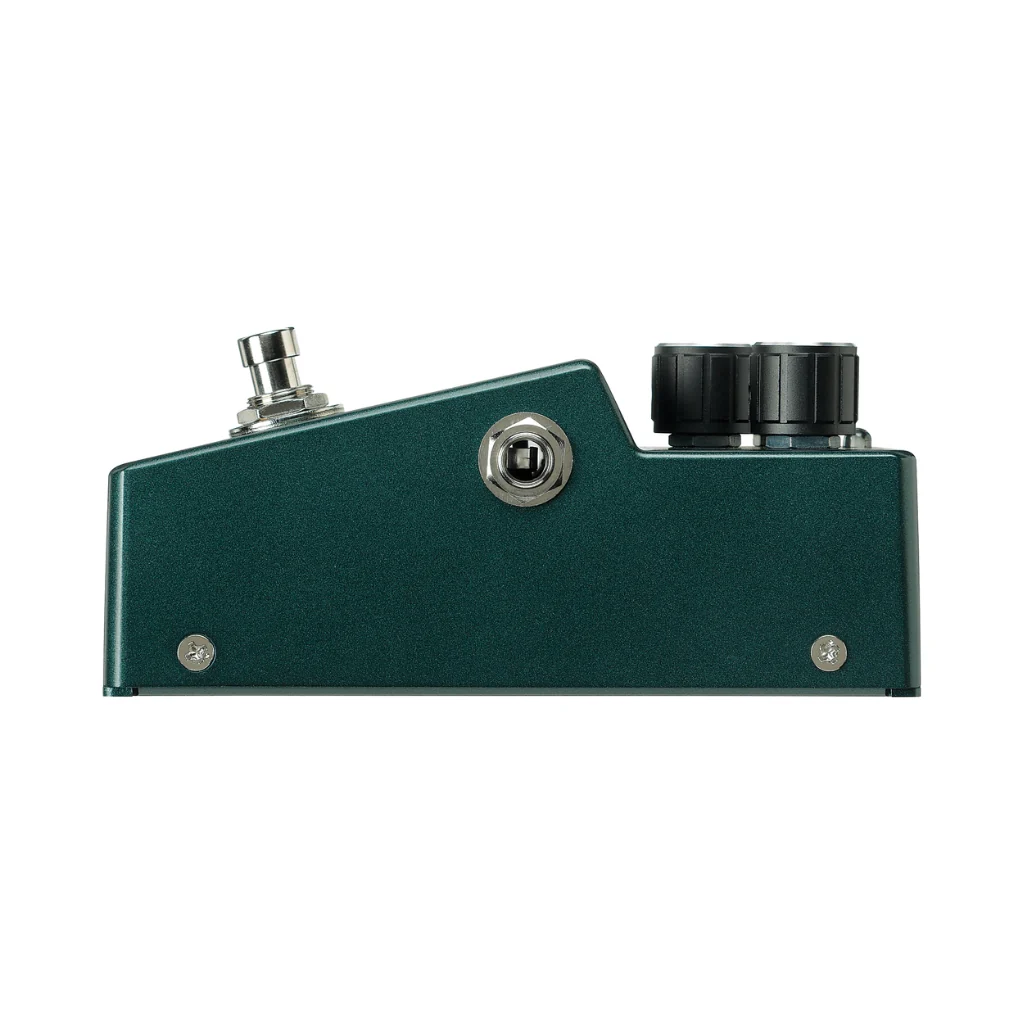

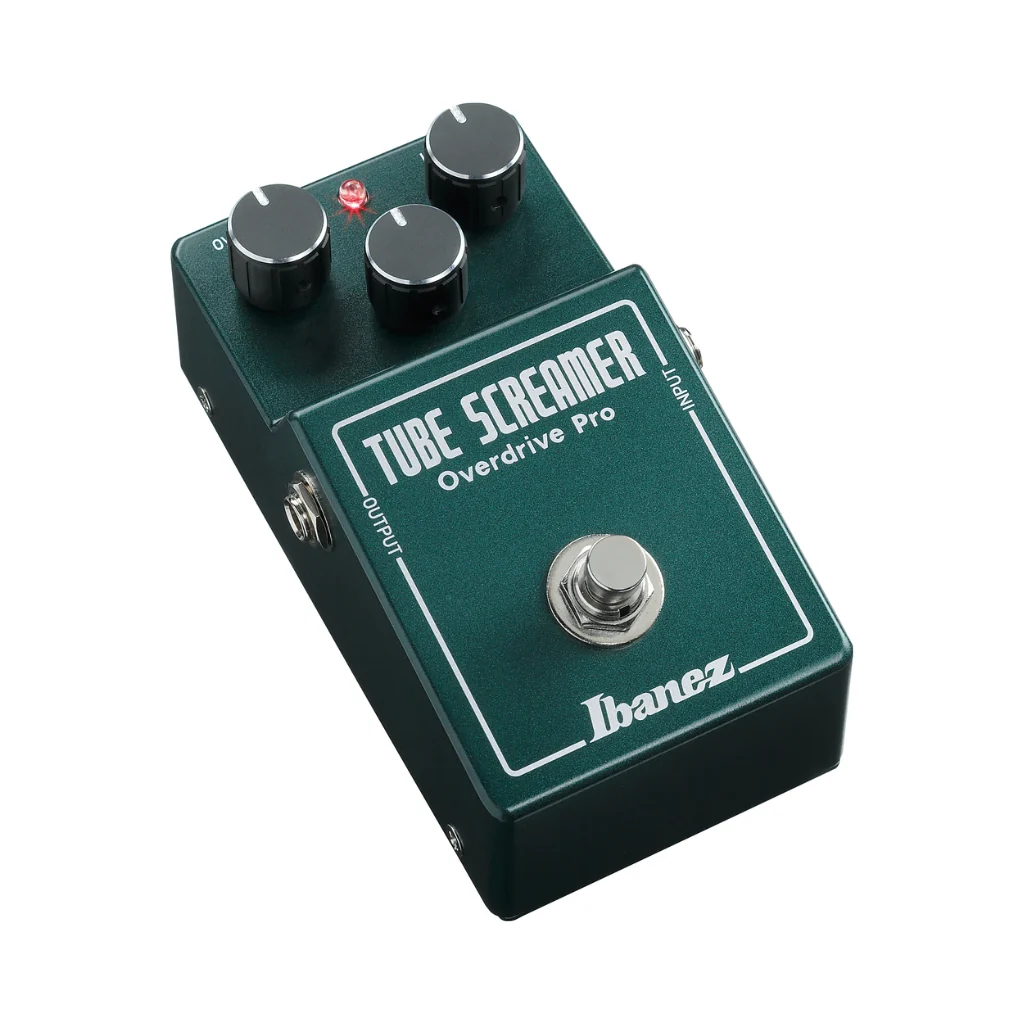

Ibanez TS808HWv2 Tube Screamer Overdrive Pro Pedal

Ibanez TS808HWv2 Tube Screamer Overdrive Pro Pedal is a premium hand-wired evolution of the legendary Tube Screamer, designed for players who demand enhanced clarity, refined tone shaping, and uncompromising build quality. Developed after extensive circuit analysis and component evaluation, this limited-edition model refines the iconic TS808 sound while expanding its tonal versatility and dynamic range.

At its core, the TS808HWv2 retains the revered JRC NJM4558 op-amp that defines the classic Tube Screamer character, delivering smooth midrange-focused overdrive with natural compression and musical breakup. Ibanez engineers enhanced the circuit with carefully selected high-end components, including MOGAMI OFC cable (AWG21), premium capacitors, and carbon film resistors, ensuring exceptional signal integrity and tonal precision. A +6dB output boost—inspired by the TSV808 collaboration—adds increased headroom and full-range clarity while preserving the signature mid-hump that made the original famous. Handwired in Japan using point-to-point construction, this pedal delivers boutique-level craftsmanship in a road-ready format. Available from Sky Music Australia, it is a top-tier overdrive for serious guitarists seeking legendary Tube Screamer tone with modern refinement.

Features

• Premium hand-wired reissue and refinement of the iconic TS808 Tube Screamer
• Retains the legendary JRC NJM4558 op-amp for classic Tube Screamer tone
• Enhanced circuit design for wider tonal range and improved clarity
• +6dB output boost for increased headroom and full-range response
• Hand-selected premium components including MOGAMI OFC cable and film capacitors
• True bypass switching for pure signal integrity
• Custom black alumite knobs and limited-edition housing design
• Handwired point-to-point construction made in Japan
• Highly responsive to playing dynamics and volume control
• Ideal for blues, rock, fusion, and lead guitar tones

Specs

• Product Type: Overdrive Pedal
• Brand: Ibanez
• Model: TS808HWv2 Tube Screamer Overdrive Pro
• Series: Tube Screamer
• Circuit Type: Analog, Handwired
• Controls: Overdrive, Tone, Level
• Bypass: True Bypass
• Power: 9V DC (center negative) or 9V battery
• Current Draw: 7mA @ 9V / 11mA @ 18V
• Input/Output: 1 x 1/4" Input, 1 x 1/4" Output
• Construction: Handwired Point-to-Point
• Dimensions: 2" H x 2.8" W x 4.9" D
• Weight: 1.2 lbs
• Use Case: Live Performance, Studio, Overdrive/Boost Applications
